Advanced Foundation Monitoring for ASRC NS Building

Application

Given the permafrost conditions in northern Alaska, monitoring the foundation’s integrity is essential. Temperature monitoring from the construction phase onwards ensures the stability and safety of the ground beneath the ASRC NS facility.

beadedstream Solution

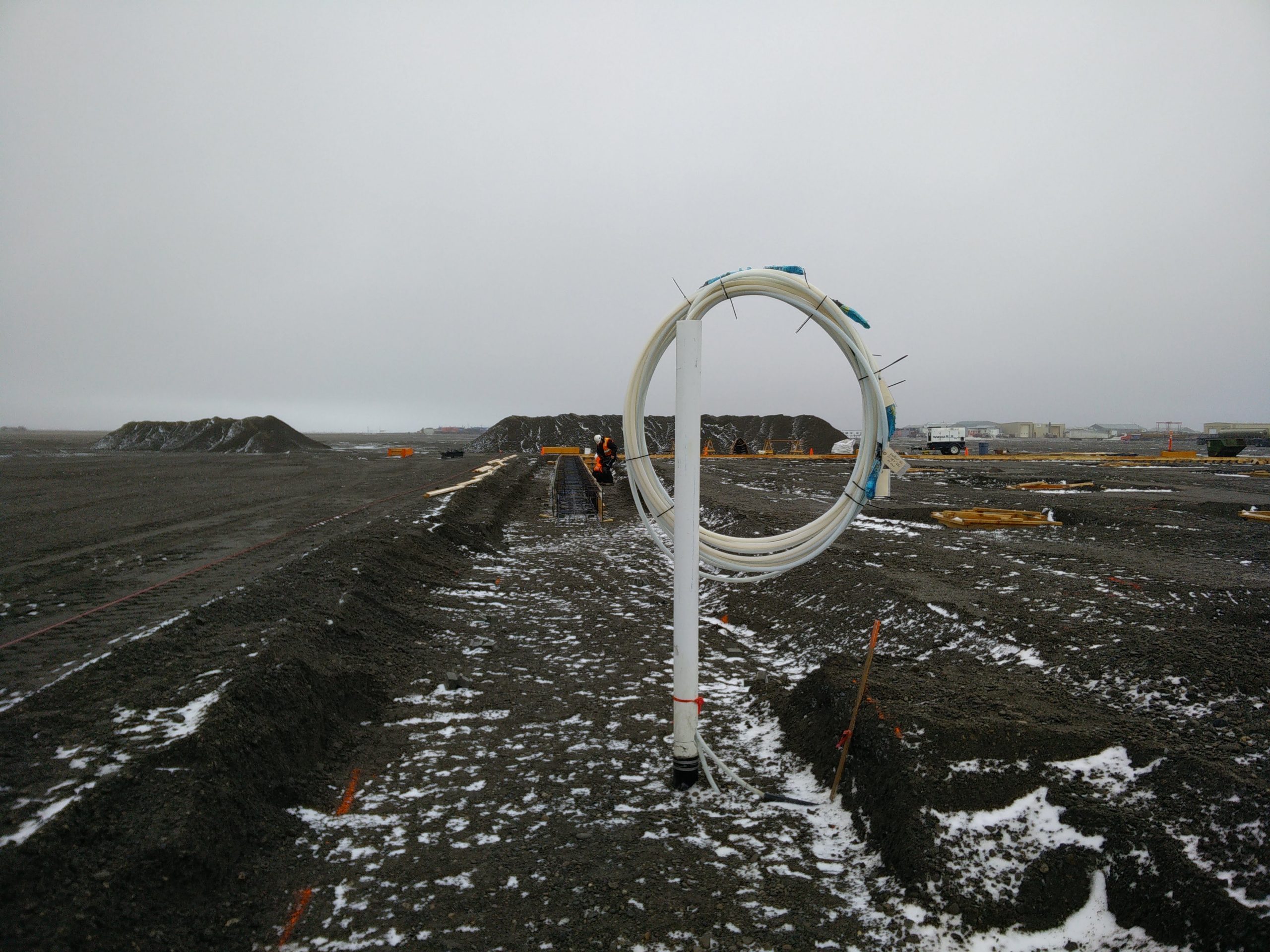

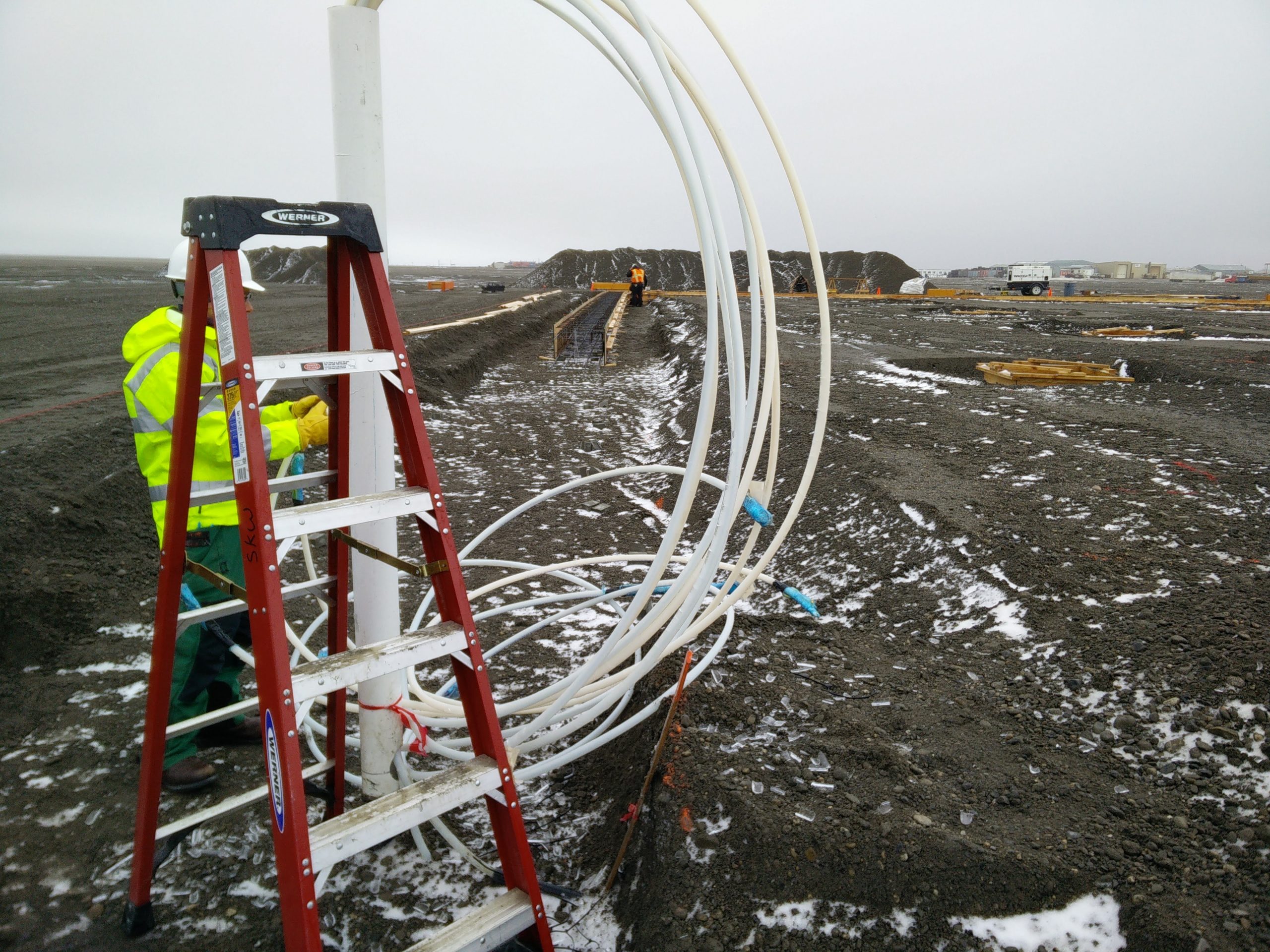

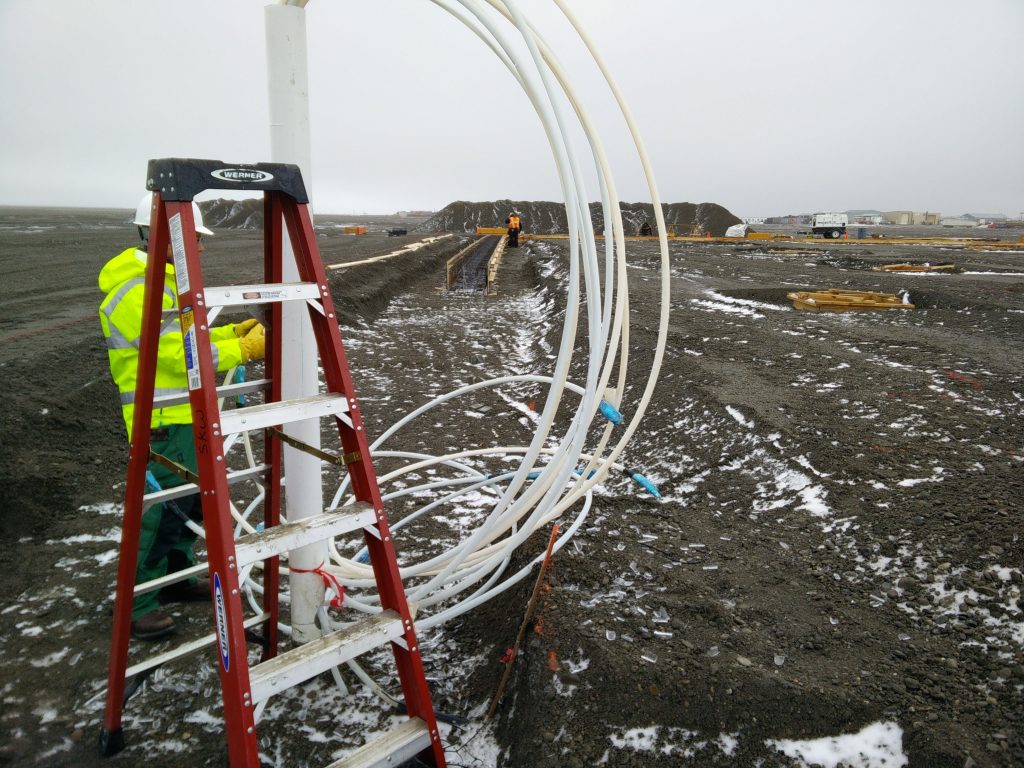

To address the critical need for temperature monitoring, beadedstream provided 8 Digital Temperature Cables (DTCs) specifically fabricated for this project. These cables, encased in PEX for durability, were strategically installed across the site footprint. Six vertical DTCs were positioned at depths of 0 ft (0 m), -1.8 ft (-0.55 m), and -3.3 ft (-1 m) to monitor various layers of the ground. Additionally, two horizontal DTCs were installed over the vertical cables to provide further vertical monitoring points, with sensors reaching up to -202 ft (-61.6 m).

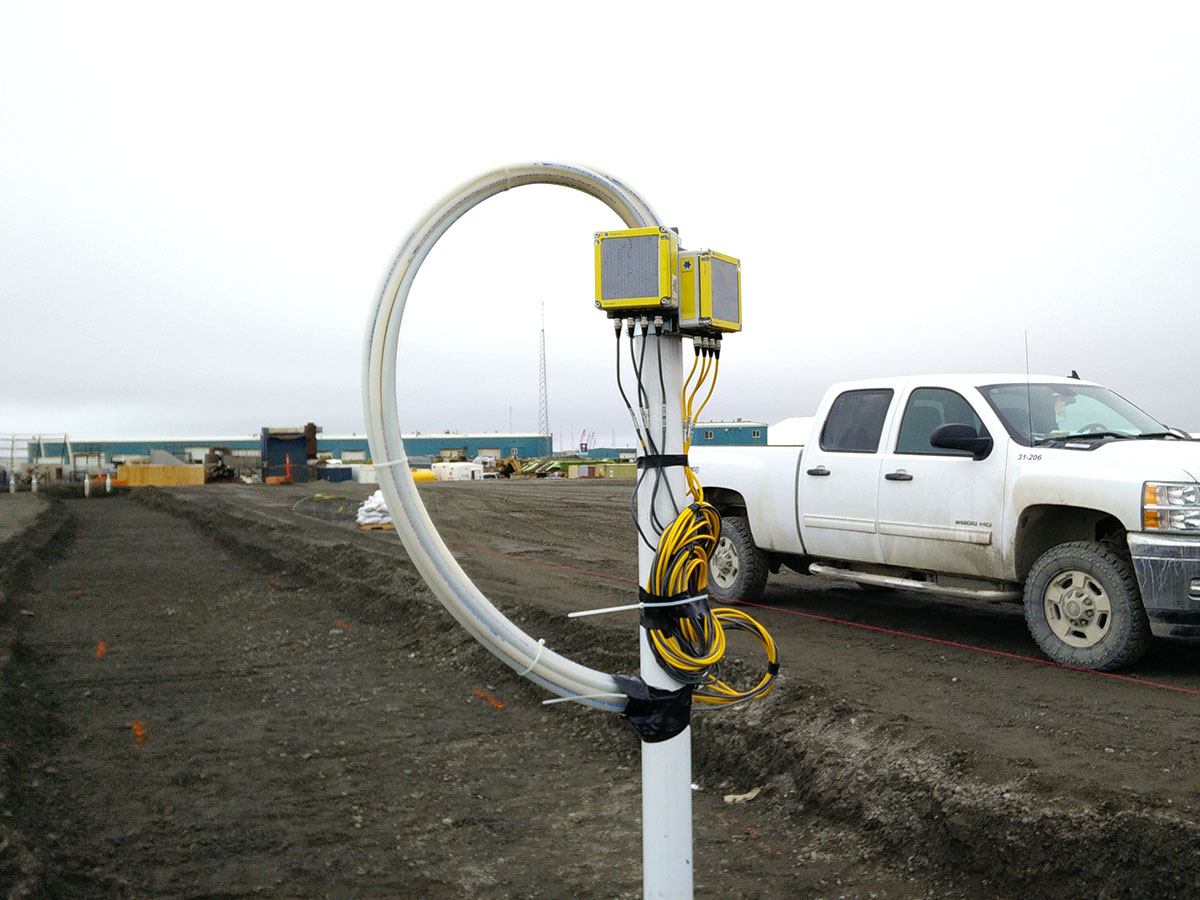

In June 2015, beadedstream visited the site to finalize the installation. The eight DTCs were terminated and connected to mounted D405 satellite data loggers. The system was configured for automatic satellite telemetry, ensuring continuous and real-time temperature data transmission. A follow-up visit is planned to integrate the monitoring setup into the finished building’s panel system. In May 2016, the loggers were removed and replaced with a panel box integrated into the newly constructed building, completing the monitoring setup.

beadedstream Solution Benefits

The comprehensive temperature monitoring system provided by beadedstream ensures the stability and safety of the ASRC NS facility’s foundation. The real-time data transmission allows for immediate response to any temperature fluctuations, safeguarding the structural integrity of the building and protecting the investments made in this critical infrastructure.
