Product Highlights
  • Everything great about the standard DTC
  • Double extrusion process with added hard wire helix to bite back
  • Maximum crush resistance
  • Maximum animal chewing survivability
  • 1000 lb tensile strength straight-laid stress member fiber bundle
  • Extremely flexible. Formulated to bend nicely at -40C/F

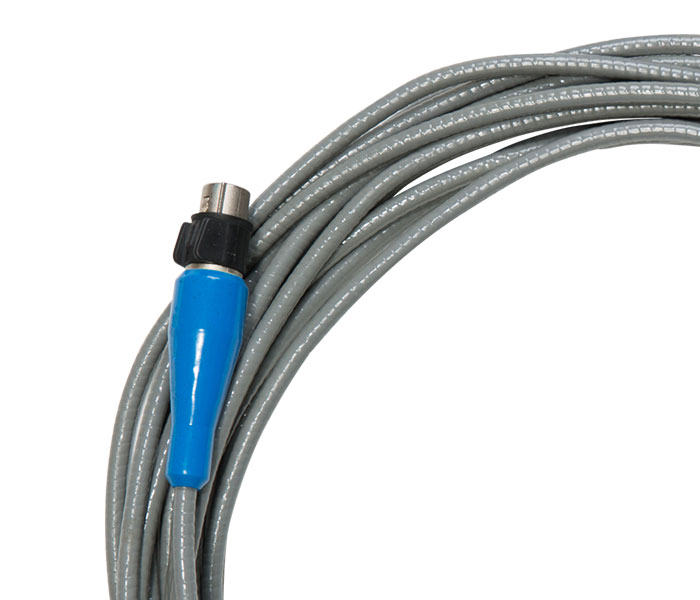

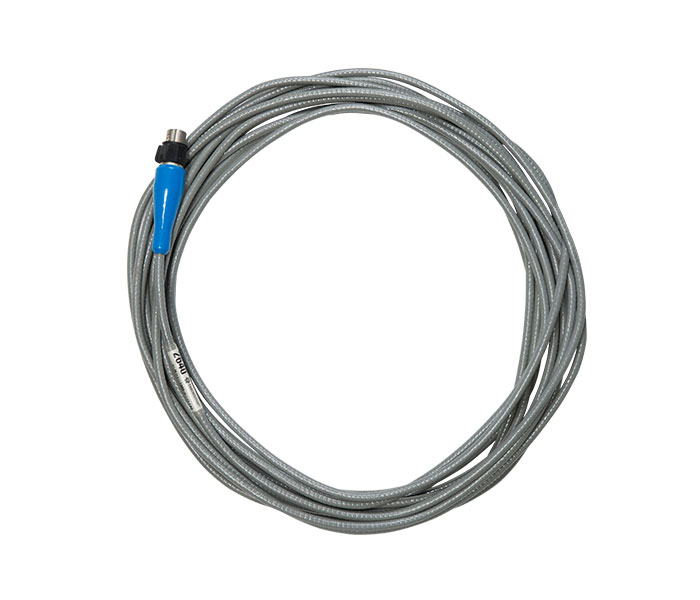

When you need a digital temperature cable that is extra reliable beadedstream’s Armored cable is your best option. It is constructed with a thicker Polyurethane coating and an embedded metal spiral weave that greatly increases resistance to animal bites and improves resilience to other cut and crush forces. This DTC comes standard with our all digital, low drift precision sensors. Sensor and cable spacing and length are completely customizable to your projects specific needs.

Polyurethane cable jacket stays flexible below -40 C/F ensuring handling in arctic conditions will not damage cable

1-wire technology permits over 100 sensors per single cable while remaining lightweight for field technicians.

Integrated aramid fiber increases torsional strength far beyond copper wiring and urethane jacket for extended product life and reduced long-term cost

All-digital temperature conversion occurs at the sensor for better accuracy on your mission critical projects.

Common 1-wire signal conversion adapts easily to other communication protocols (RS232, TTL, RS485, etc) for easy integration with logger installations.

Small 14mm diameter sensor molds are robust and flexible, molded in low profile, corrosion resistant polyurethane for easy handling and extended product life.

Cable Jacket

● Low-temperature flexibility polyurethane jacket

● Double extruded brass armored feature for UV stabilized

● Cut and abrasion resistant

● Gray finish

● IP68

Armor

● 0.015” spiral-wound brass embedded in jacket

Conductor Construction

● Four 20 AWG insulated copper conductors (Yellow, Red, Green, Black )

● 1000 lb straight-laid aramid fibers core member

● Aluminum shielding

Cable Diameter

● Outer diameter = 0.272 in +/- 0.005 (6.91 mm)

Tensile Strength

● 250 lb (113.4 kg)

Cable Weight

● 43.98 lbs per 1000 ft (64.446 kg/km)

Your Project Your Cable
