Ice Road Temperature Cables

All Products Cables Ice Road Temperature Cables
Product Highlights
  • Everything great about the standard Digital Temperature Cable (DTC)
  • Armored cabling between connector and first sensor for maximum animal chewing survivability
  • Developed to aid in satisfying required ground temperature criteria for off-road travel. Trusted by industry, regulatory agencies, and local stakeholders to deliver reliable conditions data
  • Plug & Play with all beadedstream connectivity devices

Overview

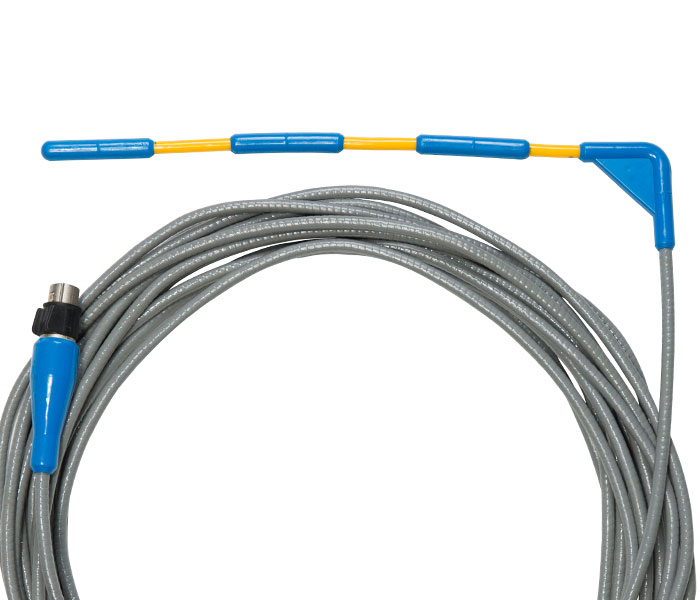

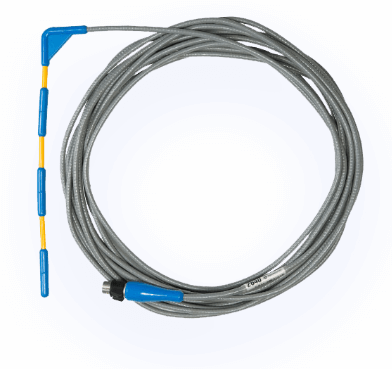

The Tundra DTC cable was created specifically for measuring ground temperatures of the tundra. All Tundra cables have a 90-degree sensor mold at the end of the cable followed by 4-inch spaced single sensors. Constructed of beadedstream’s Armored cable it remains flexible in the most extreme environments. This DTC comes standard with our all digital, low drift precision sensors. Lead length and number of end sensors are completely customizable to your projects specific needs.

Features

Polyurethane cable jacket stays flexible below -40 C/F ensuring handling in arctic conditions will not damage cable.

1-wire technology permits over 100 sensors per single cable while remaining lightweight for field technicians.

Integrated aramid fiber increases torsional strength far beyond copper wiring and urethane jacket for extended product life and reduced long-term cost.

All-digital temperature conversion occurs at the sensor for better accuracy on your mission critical projects.

Common 1-wire signal conversion adapts easily to other communication protocols (RS232, TTL, RS485, etc) for easy integration with logger installations.

Small 11mm diameter sensor molds are robust and flexible, molded in low profile, corrosion resistant polyurethane for easy handling and extended product life.

Specification

Standard Configuration

30cm (12 in) instrumented length with 4 sensors at 10cm (4 in) spacing

90 degree mold at transition between instrumented and lead cable lengths

Lead length is user specified

Custom Configurations

Customized sensor placements and instrumented cable lengths for deeper subsurface monitoring

Standard minimum spacing 10 cm (4 in)

Closer spacing available (please inquire)

Sensor Range

-55°C to +125°C (-67°F to +257°F)

Sensor Accuracy

±0.1°C from -10°C to 30°C (14°F to 86°F)

Sensor Resolution

±0.063°C

Outer Jacket & Node Construction

Low-temperature flexibility polyurethane jacket

Optional armored feature for proven resistance to wildlife

UV stabilized. Cut and abrasion resistant

IP68

Colors

High-vis yellow (standard) or gray (armored)

DTC Diameter

Sensor cable = 7.0 mm (0.28-inch)

Sensor nodes = 11.0 mm (0.44-inch)

Tensile Load Member

250 lb tensile strength with straight-laid aramid fibers built-in

Termination Options

4-pin Raymo Connector

3-4 bare leads for terminal blocks (e.g. 3rd party data loggers)
